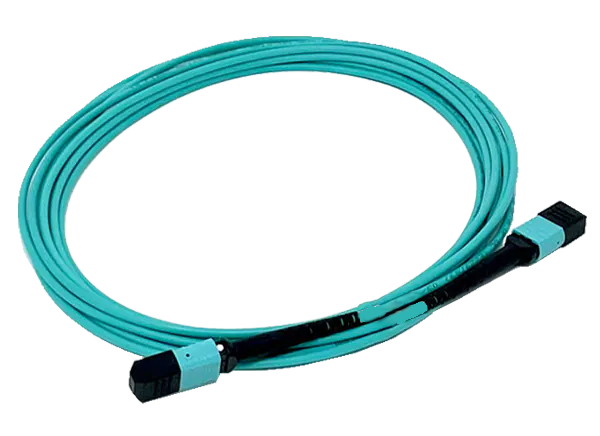

PCIe Patch Cables
The Dolphin AOC Pigtails and PCIe FireFly adapter cards PXH84x, MXH94x, and MXH95x adapters are carefully designed for maximum cable length and supports fiber patch cables up to 200 meters. All the below listed cables supports both PCIe 3.0 and 4.0 speeds. Please note the 200 meters patch cables are only supported with the Dolphin FireFly cards.
PCIe 3.0 / 4.0 x4 Optical Patch Cables
Female-Female, 12 strand, OM3 50/125, Key up - Key up (Type B) cables.
| Description | Type | Length | Ordering code | Data Sheet |
|---|---|---|---|---|
| 1 meter x4 Optical Patch Cable | OM3 | 1 meter | MTFC4FF-001M | Data Sheet |
| 10 meter x4 Optical Patch Cable | OM3 | 10 meters | MTFC4FF-010M | Data Sheet |
| 50 meter x4 Optical Patch Cable | OM3 | 50 meters | MTFC4FF-050M | Data Sheet |
| 100 meter x4 Optical Patch Cable | OM3 | 100 meters | MTFC4FF-100M | Data Sheet |
| 200 meter x4 Optical Patch Cable | OM3 | 200 meters | MTFC4FF-200M | Data Sheet |
*For custom lengths (MOQ 10) contact Dolphin.
PCIe 3.0 / 4.0 / 5.0 x8 Optical Patch Cables
Female-Female, 24 strand, OM3 50/125, Key up - Key up (Type C) cables.
| Description | Type | Length | Ordering code | Data Sheet |
|---|---|---|---|---|
| 10 meter x8 Optical Patch Cable | OM3 | 10 meters | MTFC8FF-010M | Data Sheet |
| 50 meter x8 Optical Patch Cable | OM3 | 50 meters | MTFC8FF-050M | Data Sheet |
| 100 meter x8 Optical Patch Cable | OM3 | 100 meters | MTFC8FF-100M | Data Sheet |
| 200 meter x8 Optical Patch Cable | OM4 | 200 meters | MTFC8FF-200M | Data Sheet |
*For custom lengths (MOQ 10) contact Dolphin.
PCIe Cables for other products
PCIe 3.0 cables for PCIe 3.0 products.
